FRAME
aluminium 6061, hydroformed, Gravity Casting Interface, Tapered Head Tube, thru-axle M12 (1.75) x 148mm, disc brake Post Mount -
DRIVE UNIT
Yamaha PW-X System, 250W, 80Nm, 25km/h -
DISPLAY

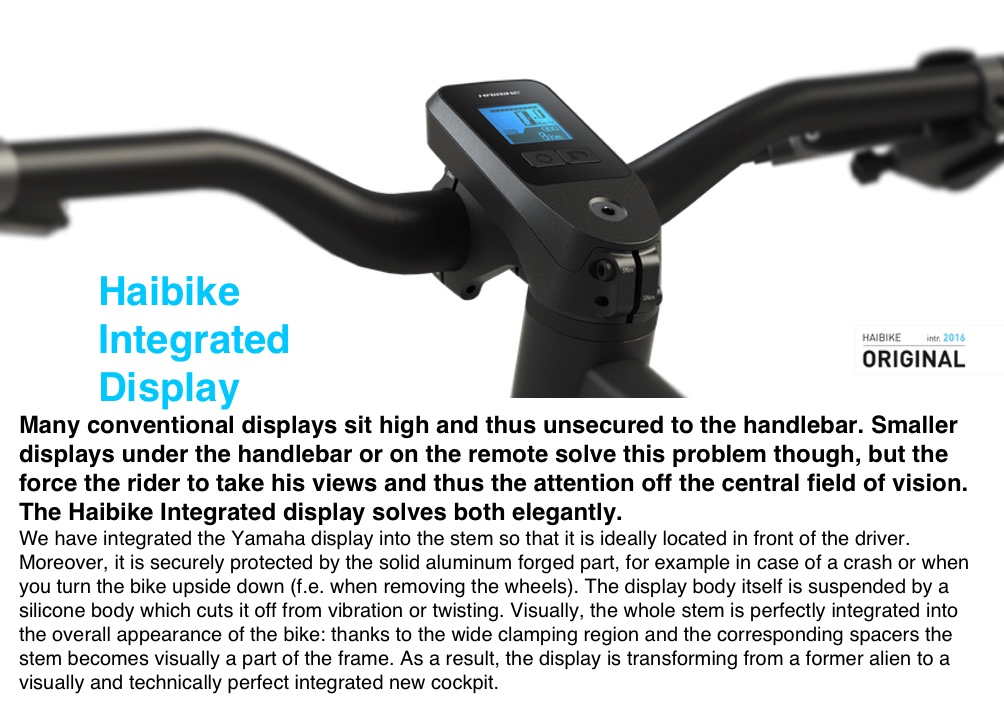

Yamaha LCD, integretad in stem -
BATTERY
Yamaha Lithium Ion, 500 Wh -
CHARGER
Yamaha quick charger 4A -
FORK
SR Suntour Raidon RL-R 650B Plus Air 15QLC32 Remote Lockout, air/oil, Travel: 120mm, aluminium steerer tube 1 1/8" - 1 1/2" tapered, thru-axle Boost -
SHIFTING SYSTEM
Shimano Deore XT M786 Shadow Plus, 20-speed -
FRONT DERAILLEUR
Shimano SLX M7000 -
GEAR LEVER
Shimano Deore M610, rapidfire -
REAR SPROCKET
SunRace CSMS2, 11-40 teeth -
CHAIN
KMC X10e -
CHAIN RING
FSA, 32-44, aluminium -
BRAKE LEVER
Magura MT4 HC-lever, aluminium -
FRONT BRAKE
Magura MT4, 203mm, hydraulic disc brakes -
REAR BRAKE
Magura MT4, 180mm, hydraulic disc brakes -
TYRES
Schwalbe Nobby Nic Evo SnakeSkin, 70-584 -
RIMS
Rodi TR40, with eylets, aluminium -
FRONT WHEEL HUB
XLC Evo disc, thru axle 15x110 boost -
REAR WHEEL HUB
XLC Evo disc, thru axle 12x148 boost -
SPOKES
Sapim Leader, black -
HANDLEBAR
Haibike Components TheBar +++ -
GRIPS
XLC lock on grips Sport -
STEM
Haibike Components TheStem, Displayintegration, A-head, Bar bore: 31.8mm -
HEAD SET
A-Head Tapered, Cartridge, aluminium -
SADDLE
Selle Royal Voga -
SADDLE SUPPORT
Haibike Components The Seatpost +++, patent, 31.6mm -
PEDALS
XLC Freeride Plattform Pedal -
WEIGHT
20.2kg -
TOTAL PERM. WEIGHT
120kg -
WHEEL SIZE
27.5"
The statutory liability for material defects applies to the entire bicycle for two years. Excluded from this are wear and tear parts. You can get more information about the wear and tear parts in your Haibike manual.
